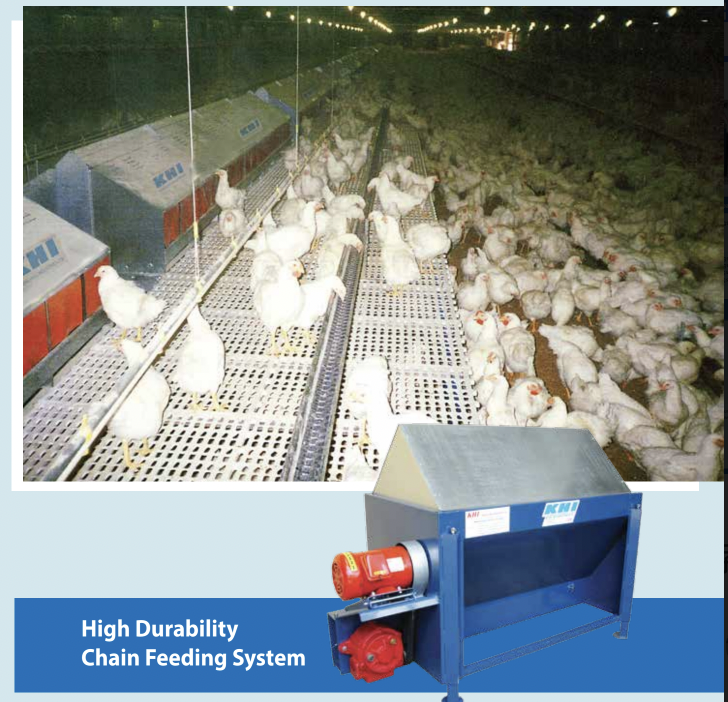

High Durability Chain Feeding System

High Durability
Chain Feeding System

KHI CHAIN FEEDING SYSTEM has been proven as one of the most reliable in fast feed delivering system for broiler breeder. The rigid – designed component with high quality standard oers maximum benets to the system lifetime. It is available for oor type or suspended type system, with variety options in speed delivering and feed hopper capacity selection.

KHI chain feeding system in equipped with high durability performance drive units with selection of single and multiple high speed delivery up to 55M/min (180ft/min).

Multi high speed KHI chain feeding system allows you control over feeding time and duration with the reliable automation control panel for timing programs that allows exibility in feeding schedule. It leads to faster feed distribution to achieve almost same time feeding to birds.


ModelDimensionFeed LoadCapacityChain SpeedDrive Unit Type
Drive Unit with Feed Hopper (Belt Drive)120*70*68200kgs2.0HP
3.0HP
120′ / min
120′ / min
90′ / 180′ / min
* 0 – 180′ / min
Single Speed
Single Speed
Multi Speed
*Variable Speed
Extension Feed Hopper120*70*68
85*70*68
48*48*90
48*48*70
200kgs
140kgs
90kgs
60kgs






ModelDrive Unit with Feed Hopper (Belt Drive)Extension Feed Hopper
Dimension120*70*68120*70*68
85*70*68
48*48*90
48*48*70
Feed Load200kgs200kgs
140kgs
90kgs
60kgs
Capacity2.0HP
3.0HP



Chain Speed120′ / min
120′ / min
90′ / 180′ / min
* 0 – 180′ / min



Drive Unit TypeSingle Speed
Single Speed
Multi Speed
*Variable Speed

Circuit Length (max.)Drive Unit CapacityChain SpeedDrive Unit Type
200 M1 x 2.0 HP
1 x 3.0 HP
120′ / min
90′ / 180′ / min
* 0 – 180′ / min
Single Speed
Multi Speed
*Variable Speed
240 M1 x 3.0 HP
2 x 2.0 HP
120′ / min
90′ / 180′ / min
* 0 – 180′ / min
Single Speed
Multi Speed
*Variable Speed
270 M ~ 300 M2 x 2.0 HP
2 x 3.0 HP
120′ / min
90′ / 180′ / min
* 0 – 180′ / min
Single Speed
Multi Speed
*Variable Speed
* Drive unit motor is based on 3-phase motor 50Hz under normal usage circumstance.
* Variable speed drive unit, speed adjustable with inverter.
Circuit Length (max.)200 M240 M270 M ~ 300 M
Drive Unit Capacity1 x 2.0 HP
1 x 3.0 HP
1 x 3.0 HP
2 x 2.0 HP
2 x 2.0 HP
2 x 3.0 HP
Chain Speed120′ / min
90′ / 180′ / min
* 0 – 180′ / min
120′ / min
90′ / 180′ / min
* 0 – 180′ / min
120′ / min
90′ / 180′ / min
* 0 – 180′ / min
Drive Unit TypeSingle Speed
Multi Speed
*Variable Speed
Single Speed
Multi Speed
*Variable Speed
Single Speed
Multi Speed
*Variable Speed
* Drive unit motor is based on 3-phase motor 50Hz under normal usage circumstance.
* Variable speed drive unit, speed adjustable with inverter.

KHI Breeder House Management – reliable complete solution for optimum production.

feed chain

FEED CHAIN

HIGH DURABILITY FEED CHAIN
All KHI feed chain is imported from United States under a careful quality test on the pull strength capacity to ensure its best performance in poultry house.


corner set

CORNER SET

HEAT TREATED CAST IRON CORNER WHEEL
It provides maximum wear resistance to achieve
long product service life.


SELF LUBRICATED BRONZE ALLOY BUSHING
It keep corner shaft surface smooth and oil at all time, also it provides free maintance on corner shaft and bush.


FEED HOPPERS

Variety capacity feed hoppers are available. It offers flexibility to suit for any configuration poultry house plan.
